Automated production of Geoliners, Geotexiles, and Geomembrane

Geomembranes are a reliable and cost effective solution to any containment need. There are many different types and can be made from different materials such as PVC, urethane, HDPE, Polypropylene and more…

They are ideal for a variety of primary and secondary applications including;

  • pond liners
  • reservoirs
  • lakes
  • portable water storage
  • irrigation canals
  • covers
  • landfills and more.

There are a variety of methods that exist for producing high quality geomembranes. Our fully automated solutions are best for in-house, high speed production. By producing these products in-house you reduces in-the-field labor and material handling. A fully automated solution will provide the ability to quickly weld overlaps on long straight seams producing products of various lengths and widths. Each solution is designed to use the principles of heat, speed and pressure to get the perfect welded seam.

Each machine can be fully customizable and provides full versatility for the in-house production of your geomembrane liners and covers.  Check out a few of our full turn key solutions for automating your geomembranes. Still have questions? Contact our custom sales specialist for more information about a solution that will fit your needs.

NEED TO TALK TO AN EXPERT?

TG3600

Efficiently produces any size liner or cover

The TG3600 is an automated solution designed to eliminate excessive fabric handling by using an exclusive designed welding and pulling system. This solution will dramatically reduce labor and increase production.

  • CUSTOMIZABLE – Can be configured with stationary and travel welder for optimal production
  • HOT AIR WELDING – Dual hot air welding system for increased productivity
  • MATERIAL HANDLING – Traverse pulling and welding for reduced material handling able

Multiple Roll Geo Moduline

For in-house production of any size liner or cover

This automated moduline allows you to produce any size liner in-house saving time and labor when in the field. This solution is designed to weld multiple rolls together and cut to length to provide quality, correctly sized geomembranes.

  • AUTOMATED – Hands free, continuous operation for high speed production
  • CUSTOMIZATION – Choose your technology, pick your seam types and add any finishing
  • MATERIAL HANDLING – Create large scale products with minimal material handling

Automated Inspection System

Splice rolls together and inspect material simultaneously

This automated inspection system will remove bad material, splice back together and then c-folds for easy material handling. The product is then folded in half and rewinded making a compact size product for reduced in-field installation labor.

  • CUSTOMIZABLE – Can be configured with stationary and travel welder for optimal production
  • HOT AIR WELDING – Dual hot air welding system for increased productivity
  • MATERIAL HANDLING – Traverse pulling and welding for reduced material handling able

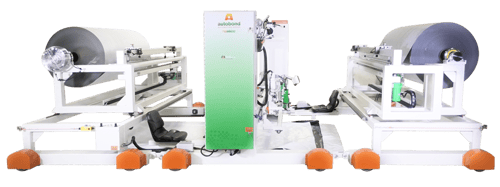

BI-Directional

Continuous in-house geo production

The Bi-directional travels up and down a track welding one layer of material at a time in each direction.

  • CUSTOMIZABLE – Can be configured with stationary and travel welder for optimal production
  • HOT AIR WELDING – Dual hot air welding system for increased productivity
  • MATERIAL HANDLING – Using unwinds and your floor as the production area you’ll reduce material handling

Extruder

Continuous in-house geo production

This machine is used in the production of geomembrane liners. It utilizes an extruder to bond the material together with a polyethylene additive. The machine will travel the length of your building eliminating the need to move your heavy liners.

  • CUSTOMIZABLE – Can be configured with stationary and travel welder for optimal production
  • EXTRUDER – Polyethylene additive extruder for bonding heavy liners

Large Folders

Customized folding systems for large covers

Simultaneously weld and/or fold large geomembranes, geoliners or covers

  • CUSTOMIZABLE – Can be configured to meet your specific requirements
  • FOLDING – For reducing product size

GRW2400

Heavy duty rewinds for professionally wound products

A super duty rewind with a capacity to roll up 10,000 lb rolls. Upon completion of your liner fabrication, the GRW2400 enables you to quickly roll up your liner for shipment to your customers..

  • HEAVY DUTY – Made to withstand a large weight capacity
  • READY PRODUCT – Will professionally wound product with minimal labor and time
