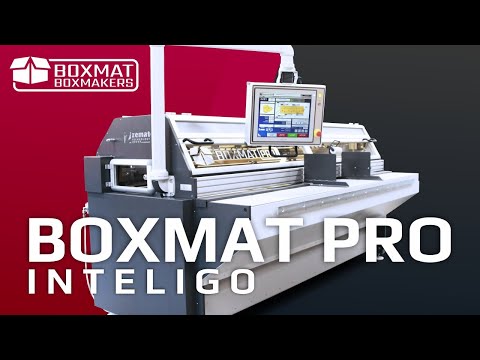

BOXMAT PROX

Fast, Flexible, Versatile Box Making Machine!

The BOXMAT PROX delivers quick ROI by optimizing box-making with its versatile, all-in-one design. Ideal for short to medium production runs, it produces boxes on demand, eliminating the need for expensive cardboard contracts and reducing inventory storage. It’s plug-n-play design increases the functionality of the machine.  Add on various feeders based on needs as well as glue or printing functionality. With the BOXMAT PROX, companies can streamline operations, reduce costs, and maintain high-quality, customizable box production.

Available in

  • North America


Best For:
  • Corrugated Boxes
Features & Option

Features & Benefits

  • Over 100 box styles for a whole range of products
  • All settings for box production done from an intuitive touch screen panel
  • Slotting, bi-directional scoring/creasing, cutting & gluing  ALL-IN-ONE MACHINE!
  • Automatic board feeder with soft grip rolls. Additional feeder options available.
  • Create your own design of boxes with FreeStyle settings
  • Ability to modify standard FEFCO/RSC/OPF/FPF and other boxes
  • No need for extra tools or dies / all settings done with servo drives
  • Optional use of perforation knives and special shape scoring wheels
  • Modular built for cutting knives (circular or blade) and scoring/creasing wheels
  • 1 minute set-up
  • Eco-drive servo motion with low power consumption
  • 10 sectional slotting knives
  • 4 cutting knives (max. 8)
  • 4 scoring/creasing wheels (max. 8)
  • External control of dimensions

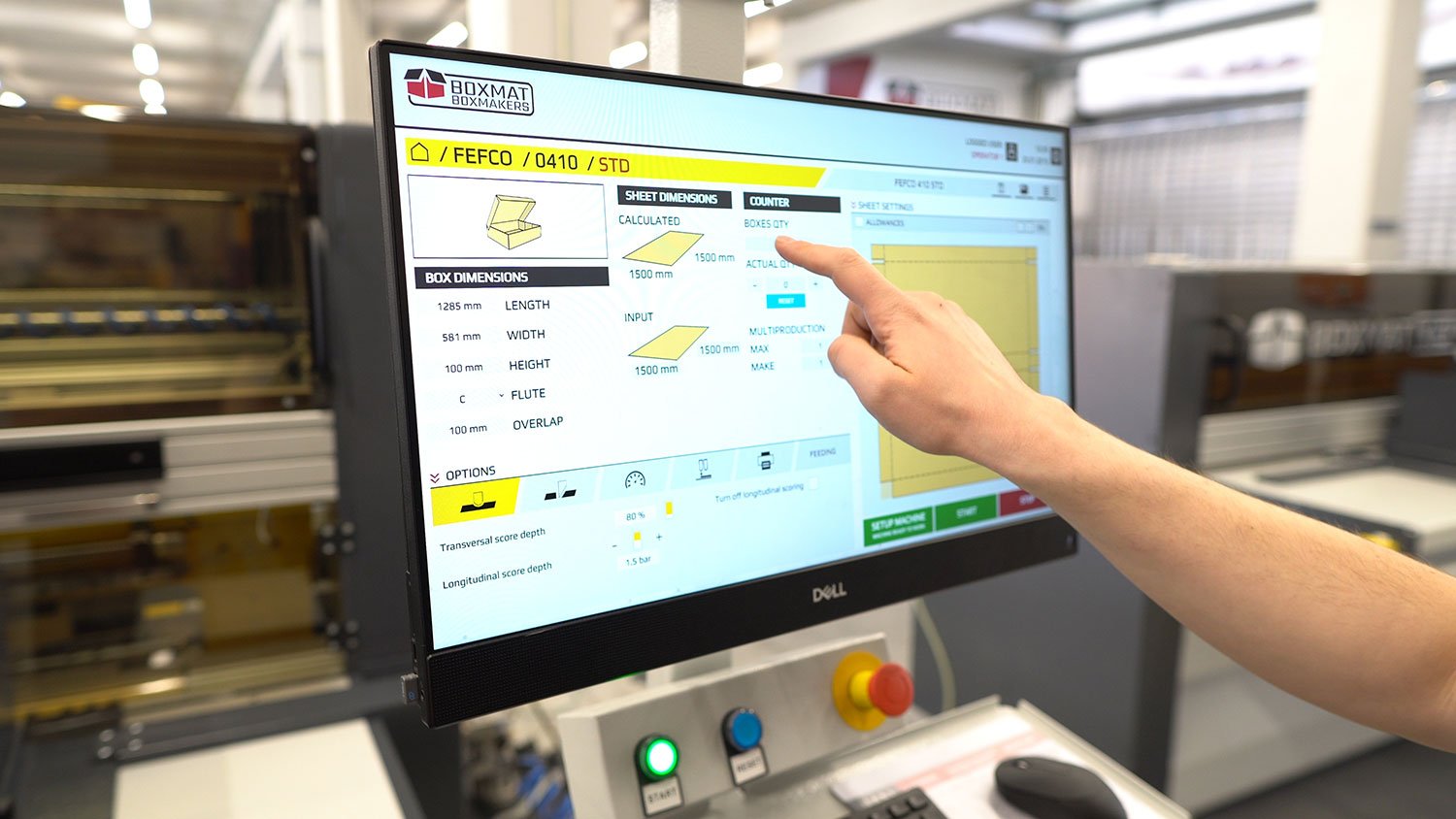

INTELIGO HMI System
  • Finish Single Corrugated Sheets or Fanfold Option
  • User-friendly 24" touch screen interface for the Boxmat series of machines
  • Box Design WIZARD allows to create any box intuitively right on the screen
  • Barcode Scanner integration allows for efficient production data input into the work flow scheduling process
  • Optional 3D product scanning can scan dimension and weight capabilities
  • Job Queue System for scheduling will synchronize with near every system

Gluing System

  • Double nozzle cold glue applicator integrated with a cross-cutting knife, saving time and streamlining the box production cycle
  • The gluing system uses single or double nozzles for dotted, dashed or continuous glue line application

MiniPRINT Module

  • Box printing and marking
  • One color mini-flexo technology printing
  • Printing/marking from the bottom-up
  • Automatic indexing of print area
  • Multiple box panel printing
  • Printing area: 100mm (4”) width and up to 300mm (10”) long
  • Multiple miniPRINT modules capable for multiple colors
  • Integrated ink container and applicator

Stacking Unit

  • Automatic stacking of corrugated cardboard boxes
  • Pneumatically controlled board receiving / drop arms
  • Stacking height for palettizing: 31” (800mm)
  • Width of receiving boards: up to 94” (2400mm)
  • Length of stacking boards: up to 118” (3000mm) or by request
  • Gravitational precision stacking with control bumpers
  • Quick manual setup
  • Rigid aluminum frame and smooth glide rolls

Multiproduction System

  • Multiproduction module can double your production capacity. The Side-by-Side Multiproduction assembly requires installation of additional center-location slotting knives and upgrading the pneumatic controls and control software
  • Deliver up to 1200 standard RSC / 201 boxes per hour
Technical Specifications

Power Requirements

  • 220/480 - 20amp. service -
    Three Phase - 50-60Hz

Power Consumption

  • 3.5kW

Air Requirements

  • 2cfm @ 90psi

Throat Width x Max. Board Length

  • 2.4m (94") width x 1m (39.4") (Sheets)

Dimensions

  • Width: 3.55m (140")
  • Depth: 1.65m (65")
  • Height: 1.75m (69")

Weight

  • 2,500kg (5,512b)
Training

Trust Miller Weldmaster to get your started!

STEP ONE

Schedule Your Training

A Miller Weldmaster certified field service engineer will contact you to schedule installation and training at your facility.
STEP TWO

Installation Preparation

We provide you with everything you need to know to get your team ready for installation and training.
STEP THREE

Staff Training

Your staff will receive extensive instruction on welding equipment operation and maintenance and how to produce your product.
CONTACT US FOR TRAINING

Machine Videos

  • Overview & How Tos
  • Training Videos
The Perfect Box Making Machine
Why Consider On Demand Box Making Machines?
On Demand Corrugated Box Making Machinery
Fastest Short Run Corrugated Boxmaking Machine
Small Printer for Corrugated Boxes
Corrugated Cardboard Stacker For Boxmaker
Automatic All In One Box Making Machine
Boxmaker with Perforating Knives to make Special Boxes
Boxmaking with Automatic Glue Applicator
Machine for Making Cardboard Packaging

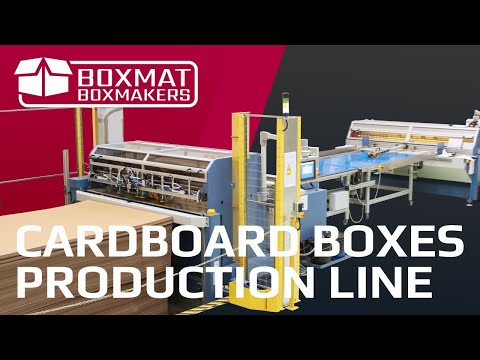

Full Production Line with Automatic Feeder
