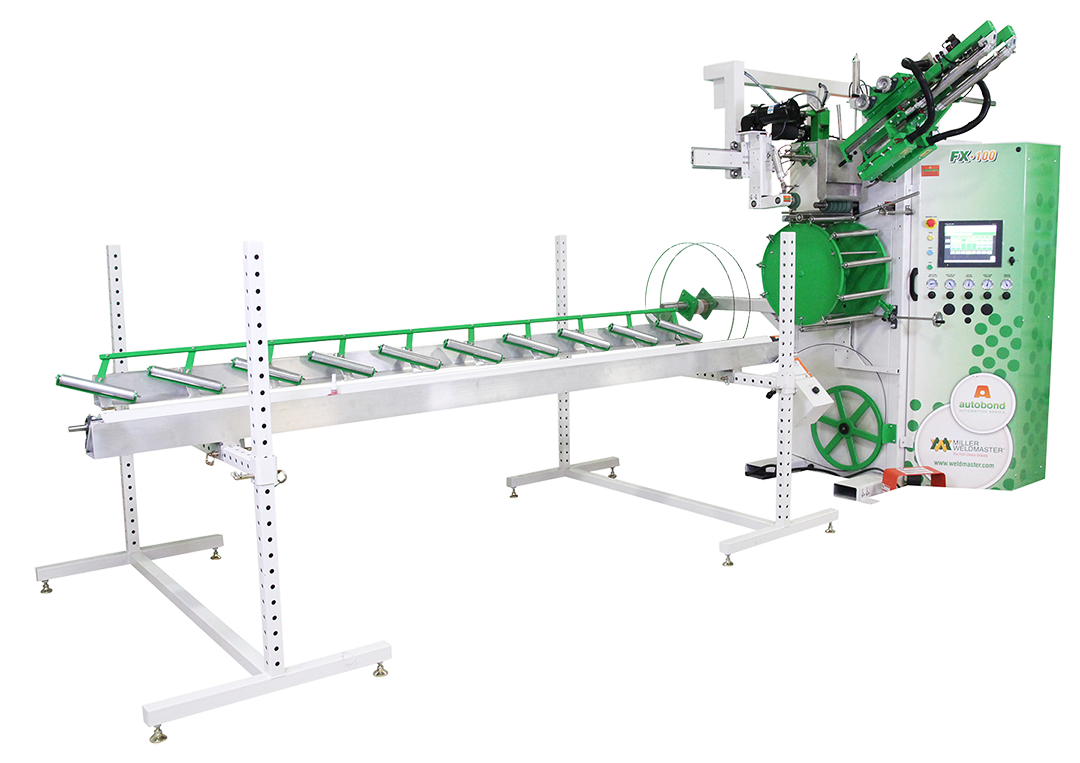

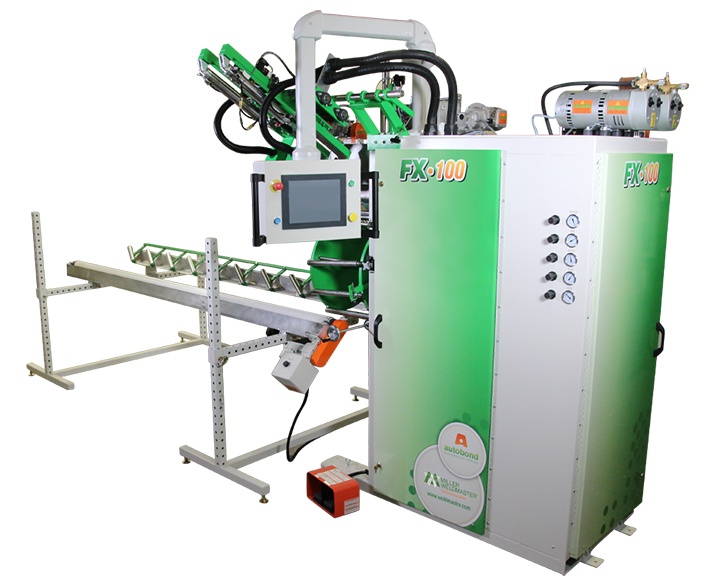

FX100 | Flexible Spiral Ducting Welding Machine

The FX100 is specifically designed to weld flexible reinforced ducting or tubing. This machine will weld reinforced tubes from 2' to 48' diameter and can easily add a wear strip to the outside.
Best For:
  • Aerospace
  • Ducting
  • Tubes
Seam Type:
  • Channel Seam Channel Seam
  • Coverstrip Coverstrip
  • Fin Prayer Seam Fin Prayer Seam
  • Extrusion Beading Extrusion Beading
Features & Option

  • Hot air welding for continuous, automated manufacturing.
  • Variable wire diameter and wire pitch for product versatility
  • Take away system for managing multiple ducting lengths
  • Heavy wire former, capable of bending diameters up to .250″ for an array of finished products.
  • Fabric tension control for easier material handling
  • Can be custom designed for your specific application

Technical Specs

Power Requirements

  • 208- 240 Volts - Single/ Three Phases - 80 Amp.
  • 400 Volts - Three Phase - 50 Amp.

Air Requirements

  • 120psi @ 5cfm

Power Consumption

  • Approx. 16kW

Maximum Temperature

  • Hot Air: 730˚C (1,346˚F)
  • Hot Wedge: 450˚C (842˚F)

Throat Width

  • 4.5m (177")

Dimensions

  • Depends on Application

Weight

  • Depends on Application

Seam Width

  • 10-50mm (0.5-2")

Welding Cycle

  • Up to 18m/min (60ft/min)*

* Depending on the application, the seam width and the type of material used
