Impulse Welding

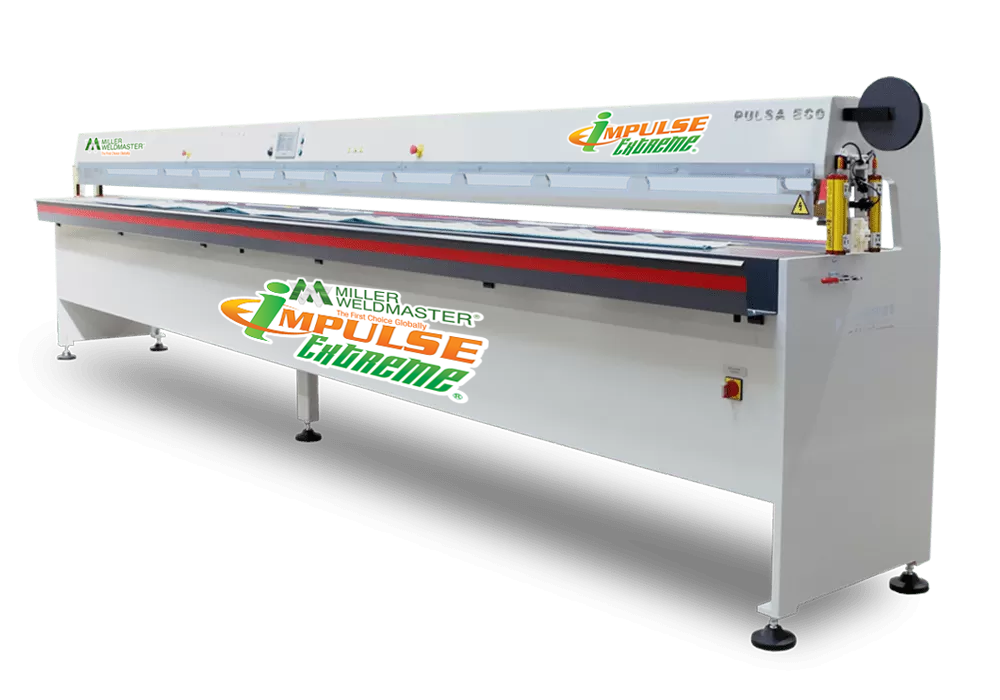

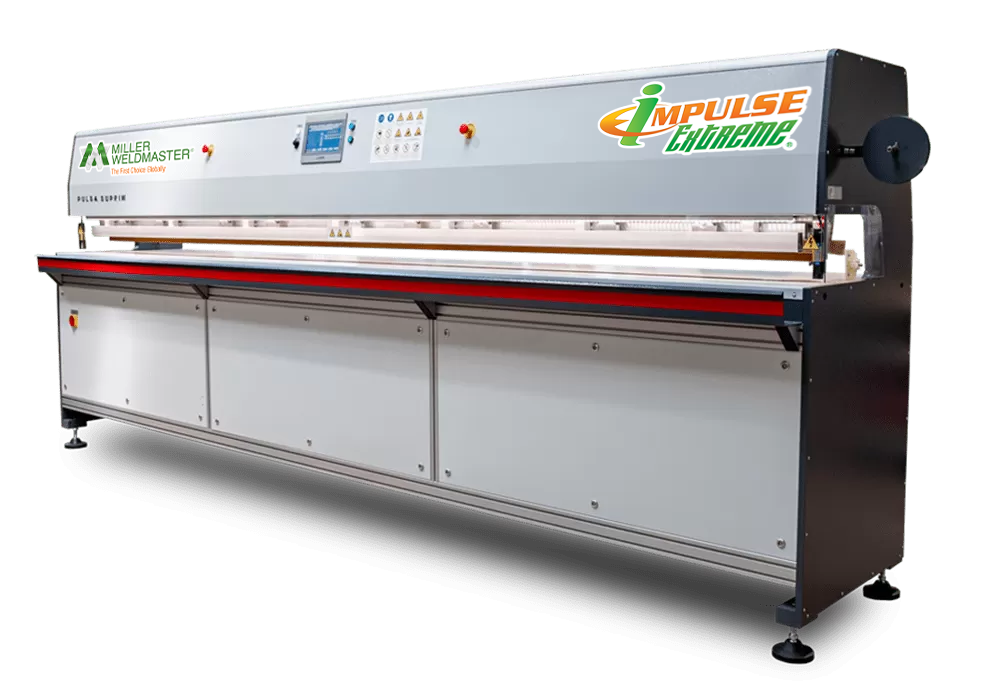

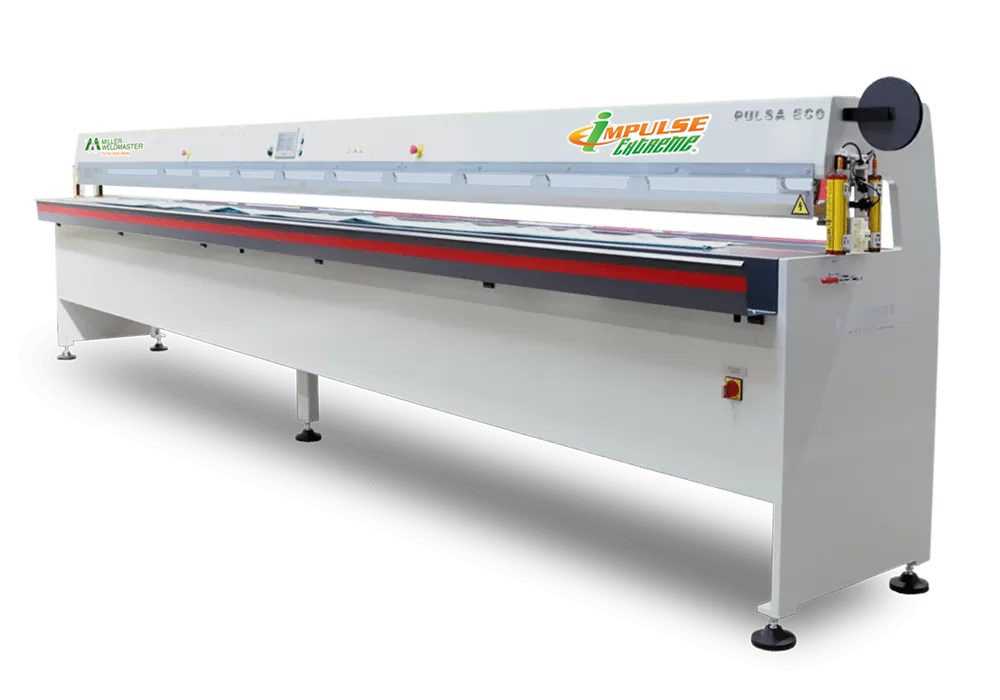

Impulse Extreme

Impulse Welding Machine – Miller Weldmaster | Precision Heat-Seaming for Thermoplastics

Explore Miller Weldmaster’s impulse welding machines — engineered for precise, high-quality, energy-efficient heat sealing of PE, PP, PVC, coated fabrics and thermoplastic materials. Ideal for industrial tarps, inflatables, awnings, liners and packaging — get reliable, airtight seams with minimal scrap and maximum throughput.

Best For:

Awnings
Banners
Automotive
Blinds
Roller Doors
Geomembranes/Liners
Inflatable Boats
Inflatables
Medical
Pools
Tents
Tarpaulins/Covers

Seam Type:

Butt Seam
Coverstrip
Double Fold
Hem
Hem with Pocket
Hem with Rope
Keder

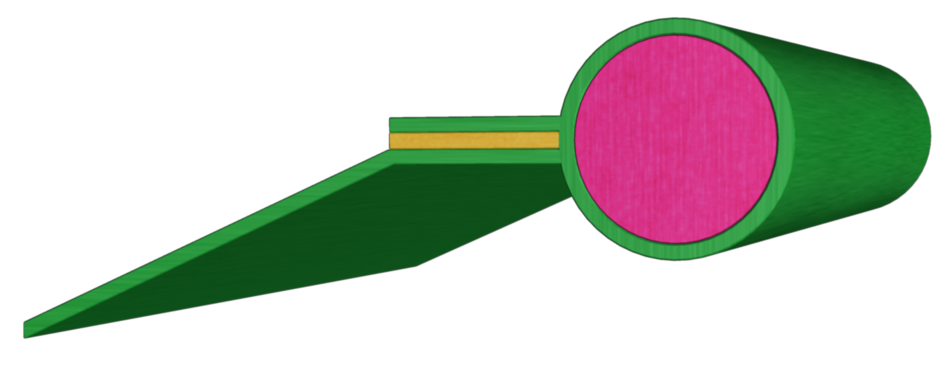

Keder Single Side Flap
Overlap
Rope
Webbing - SEG

Features & Options

Features & Benefits

PLC controlled heating and cooling cycles for consistent welds
Programable menu settings for simple operator use
Electric gear motor driven weld beam for precise, level motion to ensure consistent welds
Band temperature monitoring for longevity and repeatability
Automated folding system for hands- free operation
Quick change tooling kits reduce change-over to <5 minutes; full training and global support included.
Weld speed up to 30 m/min (varies by material and seam width) with servo drive repeatability ± 0.1 mm.
Laser alignment pointer, hot-melt tape module for non‐weldable substrates, extra large format folding table, automatic slat/cord insertion, feed/roll system for continuous operation.

Technical Specs

Power Requirements

208-240 V, single phase or 380-400 V, three phase (as required)

Air Requirements

2cfm @ 90psi

Power Consumption

Approx .10kW

Maximum Temperature

260˚ C (500˚F)

Throat Width

2m (78.7") (Up to customer specification)

Dimensions (Standard)

Width: 1500 mm
Length: 3200 mm
Height: 1850 mm

Weight

1950 kg

Seam Width

8 - 25mm (0.5 - 1")

Welding Cycle

Up to 10-40 Seconds*

* Depending on the application, the seam width and the type of material used
