TOP SELLER
Hot Air Welding, Hot Wedge Welding

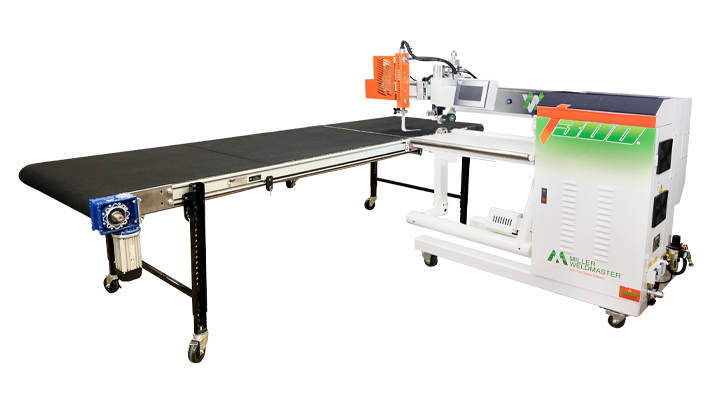

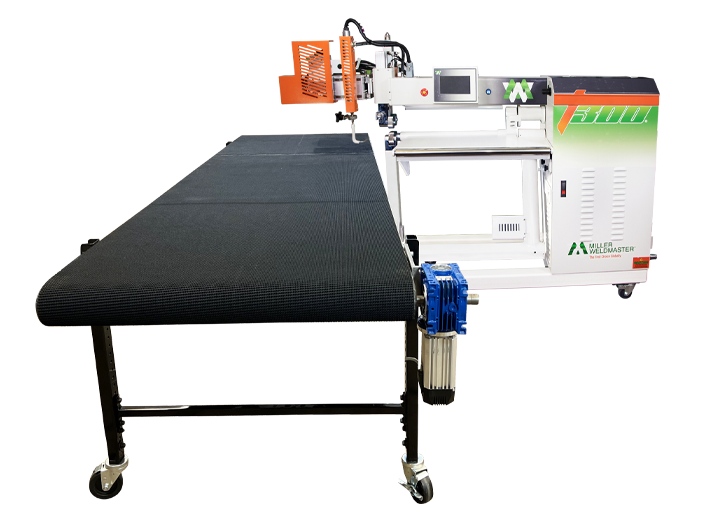

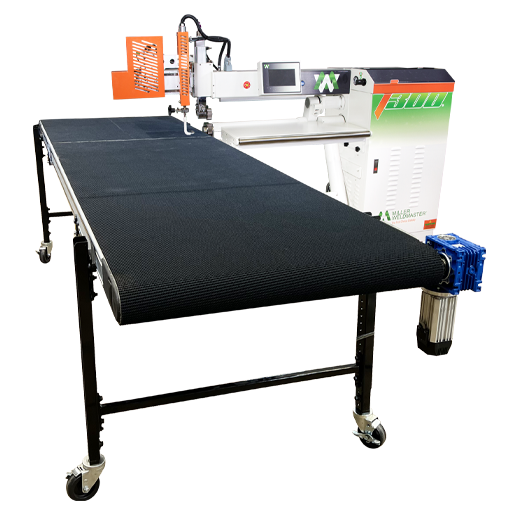

T300 Extreme Flex

Packages start at $28,500 USD
or $540/month

Our Most Versatile Welder

Our most universal welder, the T300 Extreme Flex uses hot air and hot wedge technologies with an array of seam types. Discover how the T300 Extreme Flex can help you finish tents, shelters, tarps, covers and more in no time.
Best For:
  • Aerospace
  • Athletic Mats
  • Banners
  • Containment Booms
  • Conveyor Belts
  • Cured In Place Pipeline
  • Curtains - Agriculture
  • Curtains - Truck Side
  • Roller Doors
  • Evacuation Slides
  • Filtration
  • Mattresses
  • Pool Covers
  • Pools
  • Roofing Membranes
  • Screens
  • Shelters Structures
  • Sifting Screens
  • Signs
  • Tarpaulins/Covers
  • Tents
  • Tubes
Seam Type:
  • Butt Seam
  • Channel Seam
  • Coverstrip
  • Double Fold
  • Drop Stitch
  • Fin Prayer Seam
  • Flat Seam Tube
  • Fold Overlap
  • Hem
  • Hem with Pocket
  • Hem with Rope
  • Keder
  • Multi Roll
  • Overlap
  • Sewn Seam
  • Tube
  • Extrusion Beading
  • Velcro Webbing
  • Webbing - SEG
Features & Options

Features & Benefits

  • Quick setting recall with easy operation touch screen and recipe storage
  • Increased product versatility with dual arms to configure straight or curved seams
  • Quick, repeatable head adjustments for precision welding
  • Available in hot air, hot wedge or both for product versatility
  • Multiple seam configurations for quick, easy guide change
  • Can be customized to fit your exact specifications

Technical Specs

Power Requirements

  • 208-240 Volts - Single Phase -25 Amp.
  • 380-400 Volts - Single Phase -16 Amp.



Air Requirements

  • 5cfm @ 100psi

Power Consumption

  • Approx. 6kW

Maximum Temperature

  • Hot Air: 730˚C (1,346˚F)
  • Hot Wedge: 450˚C (842˚F)

Throat Width

  • 0.88m (34.5")

Dimensions

  • Width: 0.6m (23")
  • Length: 1.5m (59")
  • Height: 1.5m (59")

Weight

  • 231kg (510lb)

Seam Width

  • 10 to 50mm (0.5 - 2”)**

Welding Cycle

  • Up to 30m/min (100ft/min)*

* Depending on the application, the seam width and the type of material used

** Additional guides might be necessary

Downloads
Our Training Process

Trust Miller Weldmaster to get your started!

STEP ONE

Schedule Your Training

A Miller Weldmaster certified field service engineer will contact you to schedule installation and training at your facility.
STEP TWO

Installation Preparation

We provide you with everything you need to know to get your team ready for installation and training.
STEP THREE

Staff Training

Your staff will receive extensive instruction on welding equipment operation and maintenance and how to produce your product.



CONTACT US FOR TRAINING

Some of Our Customers Amazing Work

Scroll through for images of some of the awesome projects our customers have done using our machines. With decades of work across multiple industries, our machines have had the chance to do a thing or two.

Canopy-Screening Images
Intricate Canopy and Branded Signage Created by Screaming Images
Tent-Sheer Top-Aurora-45W-Photo-KauaiTent-1
Special Occasion Sheer Top Tent

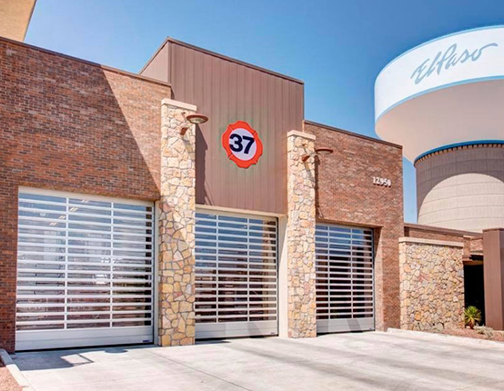

Hormann3_doors
High Speed Roll up Doors by Hormann High Performance Doors
Gym Mat_PCR
Protective Team Gym Mat Created by PCR-Lehr
Pool-Cover06
Samll Pool Cover Made From Mixed Textiles

Machine Videos

  • Overview & How Tos
  • Training Videos
PVC, Vinyl, Acrylic Fabric Welding & More
T300 Continuous Hot Air Welder
How To Make An Inflatable Product
Custom Heat System for Welding Roof Flashings
The Fastest Way To Finish Banners & Signs
Weld Zipper Onto Your Products
How to Set Up your Overlap Guide
How to Change HMI & PLC Battery
How To Start Welding At The Edge Of Your Fabric
How to Tighten your Weld Rollers
How To Align Your Wedge
T-SERIES I How to Adjust your Hem Guide I Miller Weldmaster
How To Set Up For Acrylic Welding
How to Tighten your Weld Rollers
How To Change Your Heat System
How To Switch From a 1 Inch To A 2 Inch Weld Roller
How To Clean your Air Filters on the Compressors
Explaining the Upper Roller Speed
