Hot Air Welding, Hot Wedge Welding

T600 Shelter Tent

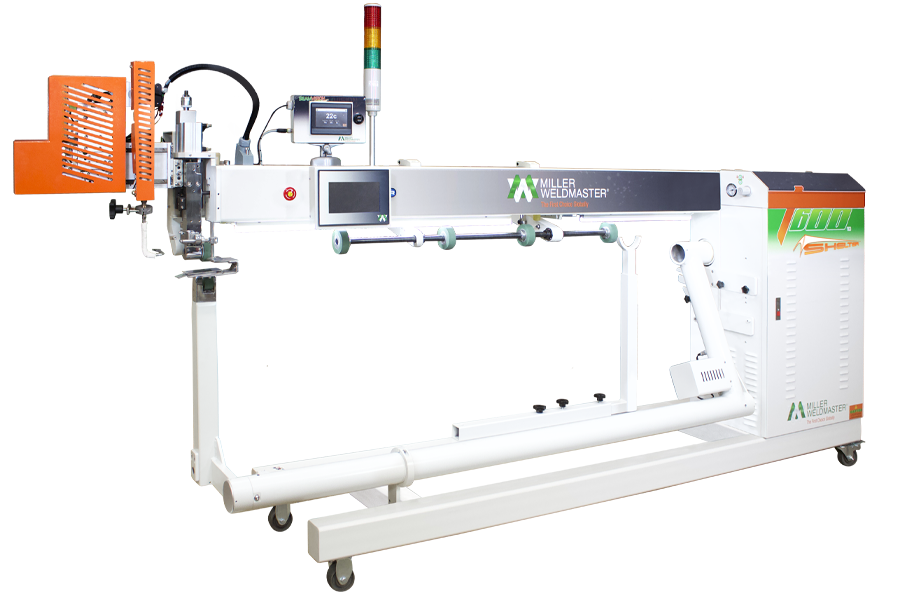

T600 Shelter Heavy-Duty Tent & Shelter Welding Machine

Heavy duty construction for your largest shelter production needs. Weld large panels and finish edges on one machine. The T600 Shelter is ready for any tent or shelter application.
Best For:
  • Clear Span Buildings
  • Curtains - Gymnasium
  • Greenhouses
  • Pergolas
  • Shelters Structures
  • Tents
Seam Type:
  • Hem Hem
  • Hem with Pocket Hem with Pocket
  • Hem with Rope Hem with Rope
  • Keder Keder
  • Overlap Overlap
  • Extrusion Beading Extrusion Beading
Features & Options

Features & Benefits

  • Touch screen operation with recipe storage for quick setting recall
  • Dual arms for increased product versatility
  • Inboard and outboard fabric puller for easier fabric handling
  • Quick, repeatable head adjustments for precision welding
  • Hot wedge, hot air or both for optimal product production
  • Easy to use controls for any worker
  • Long life cycle for decades of use

Technical Specs

Power Requirements

  • 208 - 240 Volts - Single Phase - 25 Amp.
  • 380 - 400 Volts - Single Phase -15 Amp.

Air Requirements

  • 2cfm @ 100psi

Power Consumption

  • Approx. 6kW

Maximum Temperature

  • Hot Air: 730˚C (1,346˚F)
  • Hot Wedge: 450˚C (842˚F)

Throat Width

  • 2.03m (79.9")

Dimensions

  • Width: 0.6m (23")
  • Length: 3m (120")
  • Height: 1.7m (67.5")

Weight

  • 680kg (1,500lb)

Seam Width

  • 10 - 50mm (0.5 - 2”)**

Welding Cycle

  • Up to 30m/min (100ft/min)*

* Depending on the application, the seam width and the type of material used
** Additional guides might be necessary
Our Training Process

Trust Miller Weldmaster to get your started!

STEP ONE

Schedule Your Training

A Miller Weldmaster certified field service engineer will contact you to schedule installation and training at your facility.
STEP TWO

Installation Preparation

We provide you with everything you need to know to get your team ready for installation and training.
STEP THREE

Staff Training

Your staff will receive extensive instruction on welding equipment operation and maintenance and how to produce your product.



CONTACT US FOR TRAINING
