Hot Wedge Welding

Triad Extreme Awning

Packages start at $17,750 usd MSRP
or $350/mo

Small But Powerful Awning Welder for Efficient Production

This small, portable awning welder machine comes fully assembled and ready to weld awnings, blinds and shades either stationary or traveling on table top track.
Best For:
  • Awnings
  • Shades/Tension Structure
Seam Type:
  • Hem
  • Hem with Pocket
  • Hem with Rope
  • Overlap
  • Extrusion Beading
  • Webbing - SEG
Features & Options

Features & Benefits

  • Multiple seam configurations available for multiple finishing demands
  • Excellent visibility of the welding area
  • Swing- out wedge provides for easy cleaning
  • Stationary or automatic travel on track for hands free operation

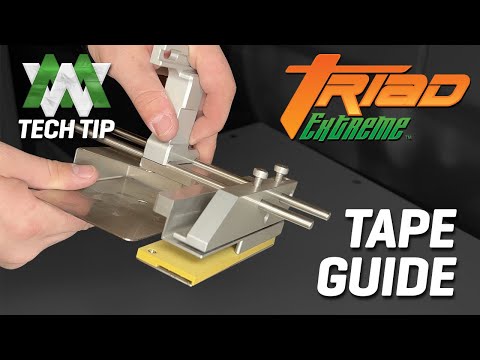

  • Tape dispenser for easy awning welding
  • Available in either 110V or 230V to suite your facility requirements

Technical Specs

Power Requirements

  • 120 Volts - Single Phase - 5 Amp.
  • 230 Volts - Single Phase - 2.65 Amp.

Power Consumption

  • Approx. 0.6kW

Maximum Temperature

  • 525˚C (977˚F)

Dimensions

  • Width: 0.254m (1o")
  • Length: 0.508m (20")
  • Height: 0.305m (12")



Weight

  • 23kg (50lb)

Seam Width

  • 10-50mm (0.5-2")

Welding Cycle

  • Approx. 10m/min.*

* Depending on the application, the seam width and the type of material used
Our Training Process

Trust Miller Weldmaster to get your started!

STEP ONE

Schedule Your Training

A Miller Weldmaster certified field service engineer will contact you to schedule installation and training at your facility.
STEP TWO

Installation Preparation

We provide you with everything you need to know to get your team ready for installation and training.
STEP THREE

Staff Training

Your staff will receive extensive instruction on welding equipment operation and maintenance and how to produce your product.



CONTACT US FOR TRAINING

Machine Videos

  • Overview & How Tos
  • Training Videos
How to Weld Custom Striped Awnings – Triad Extreme
Perfect Portable Hot Wedge Welder Producing Acrylic & PVC Awnings & More I Triad
Acrylic Welding Set Up - Triad Awning
Triad Awning Training
Triad Training I Wedge Alignment and Adjustment
Triad Training I The Drive System
